1064003 - Genuine Replacement Annovi Reverberi RMV2.5G30 pump

1064003-Genuine Replacement Pump Annovi Reverberi RMV 2.5G30 for a Selection of Hyundai Machines

OEM replacement part.

Please check the right-hand side of this page for a full list of compatible machines.

Before purchasing we recommend that you check the exploded view diagram with the diagram reference provided on this listing to be sure you have selected the part you need.

At a Glance:

• 1064003 - for a selection of Hyundai machines
• Part Number - 1064003
• 3/4" Shaft - can be used with a range of petrol engines
• OEM Part
• Diagram Reference(s) Per Model - HYW3100P-3

Technical Data

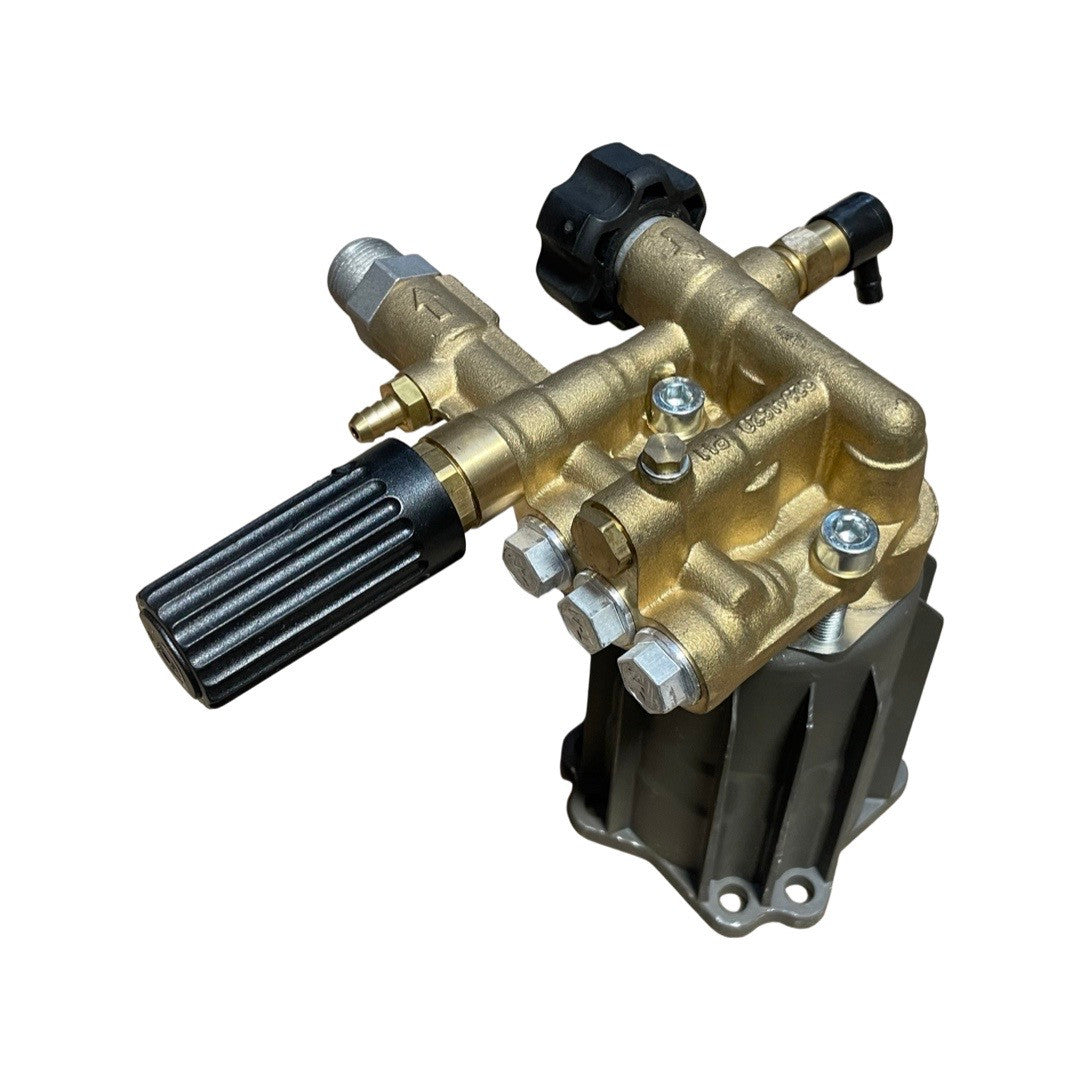

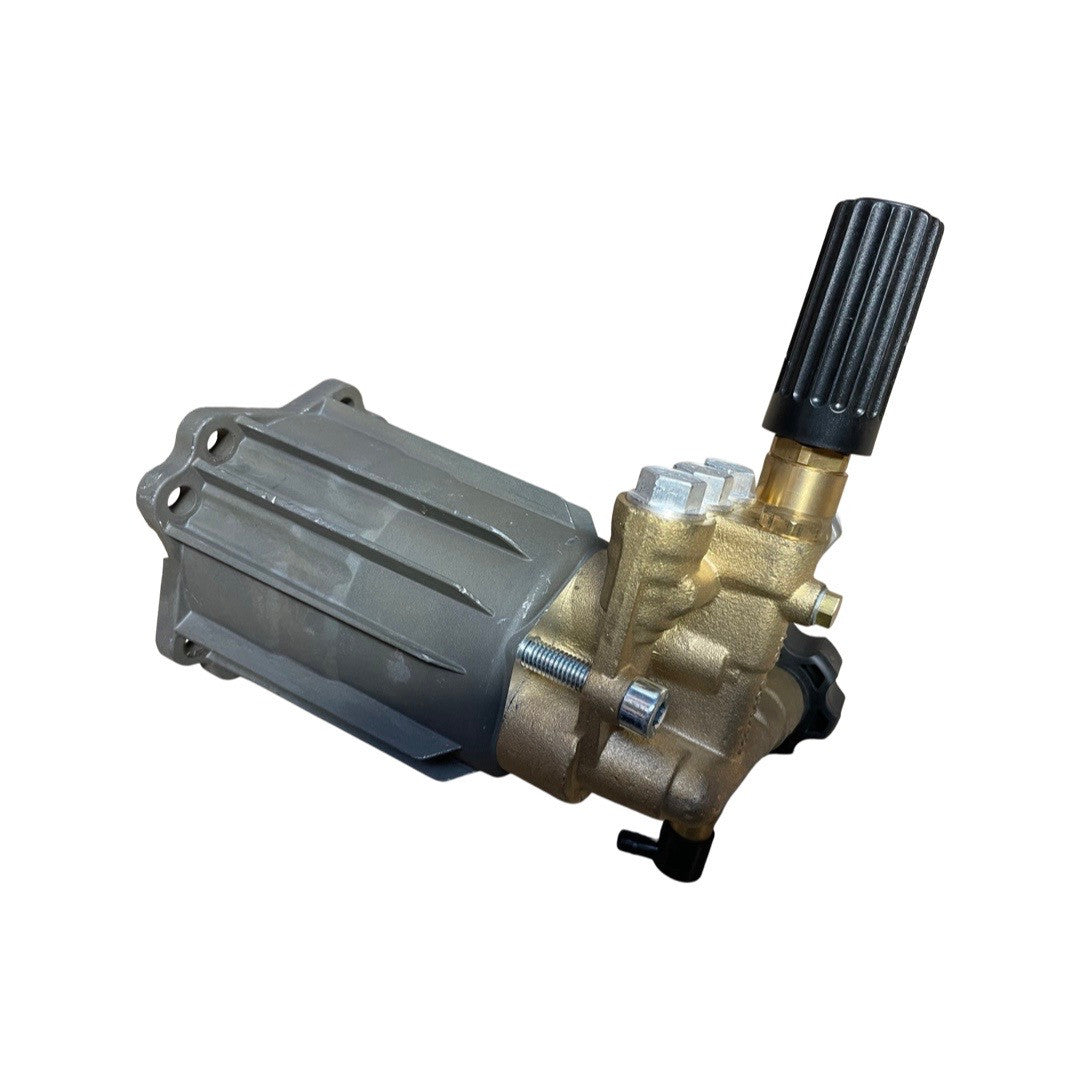

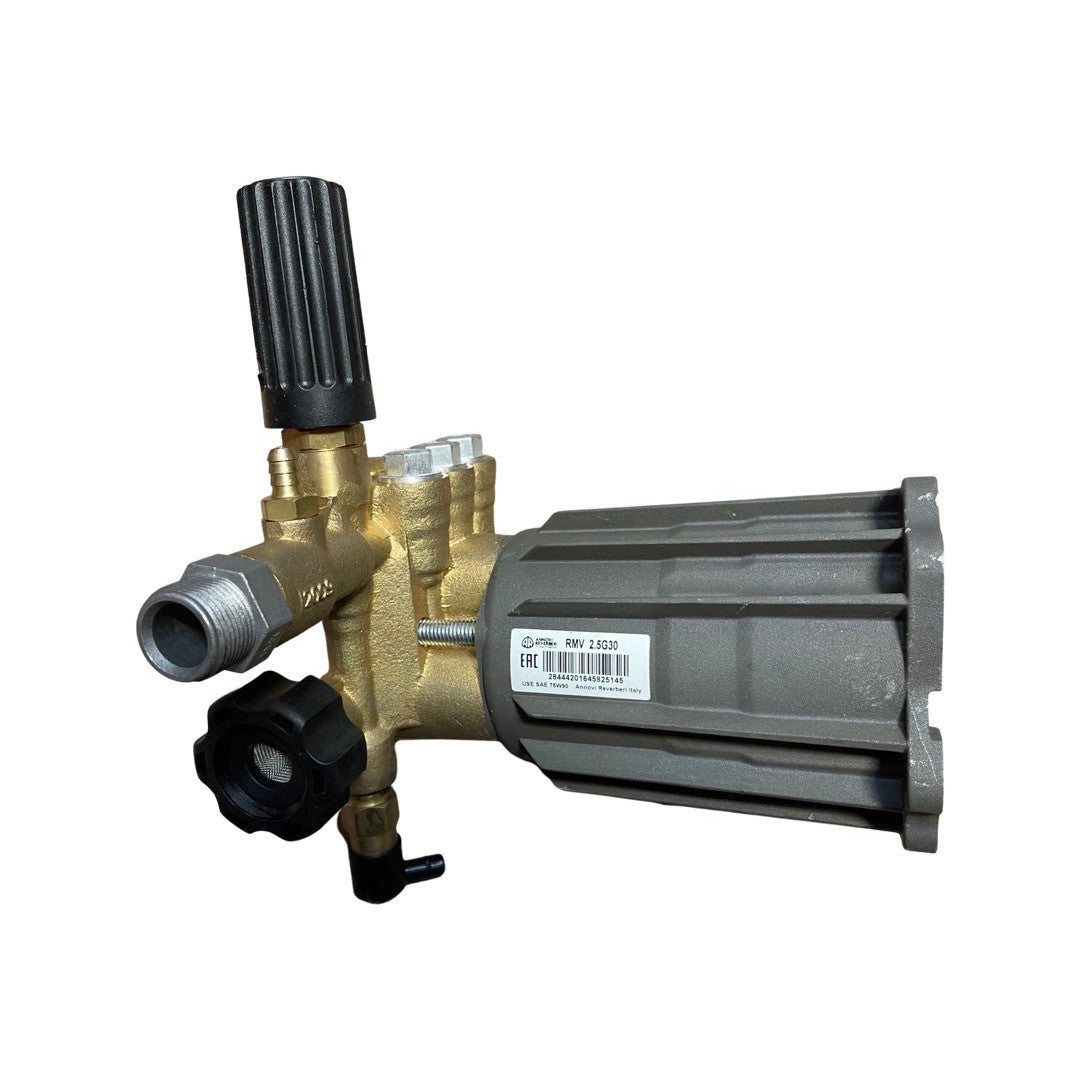

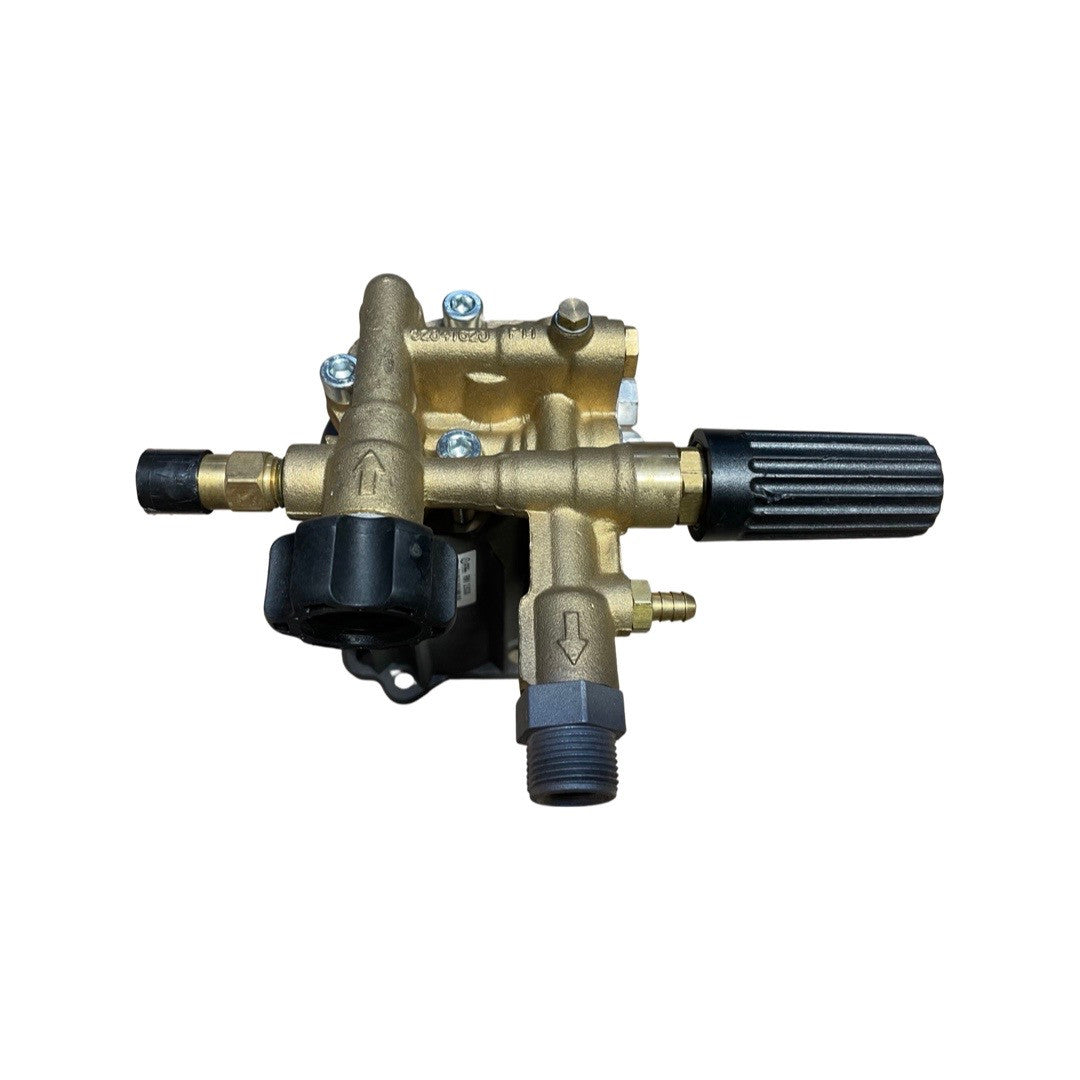

RMV2.5G30 Annovi Reverberi Hollow Shaft Pump

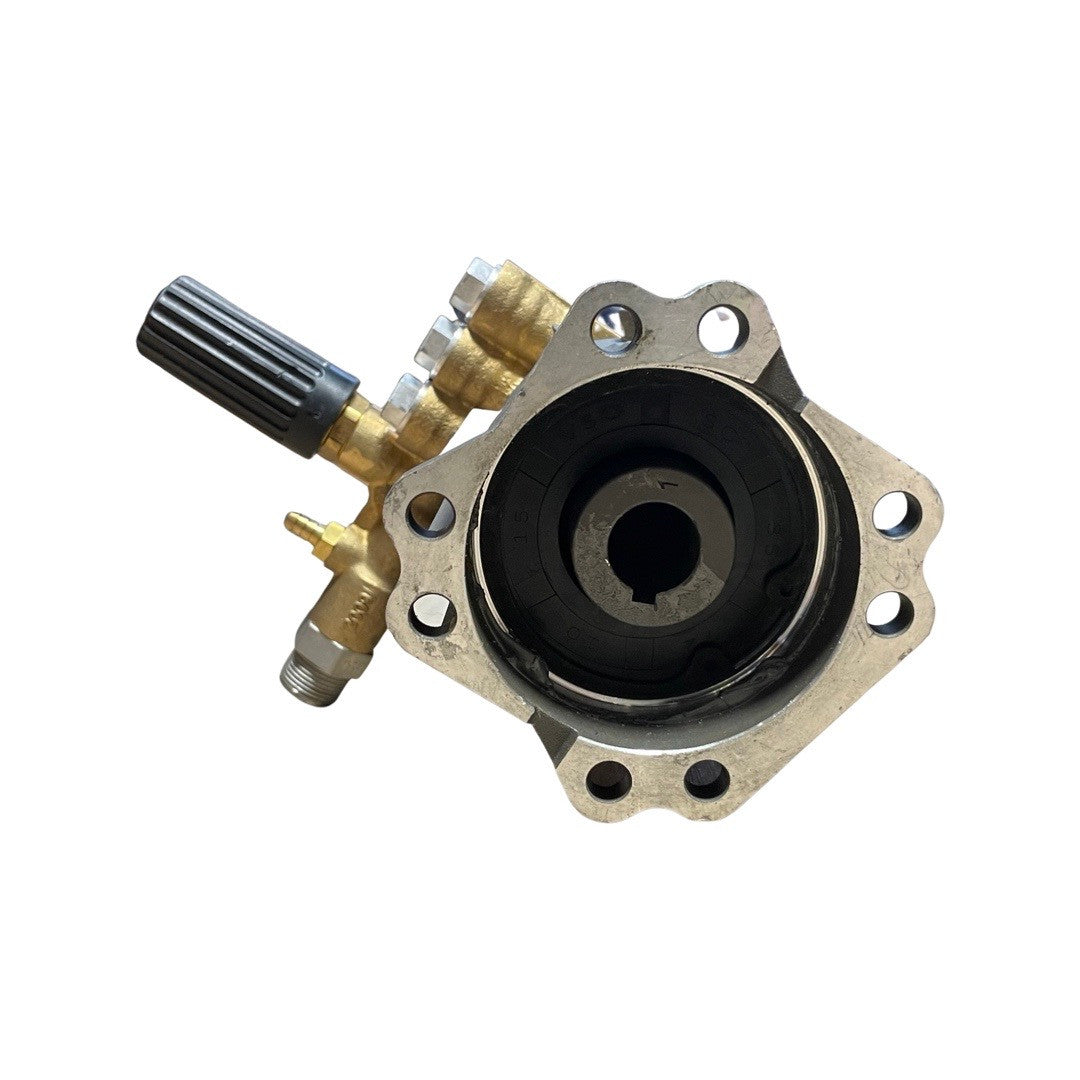

3400 RPM ideal to be driven directly by an Engine. Pump has 3/4″ hollow shaft.

11 Litres per minute @ 200 Bar / 2900 PSI

5.8 HP required to run at full pressure

Complete with Built in Unloader Valve

Note this model is as fitted to HPW1440 Annovi Reverberi Petrol Pressure Washer

3-piston alternating volumetric pumps for use on cleaning units.
Can be directly coupled to various types of motors.
Pump body in die-cast aluminium alloy.
Pistons driven by swash plate mechanism.
Two bearing systems, to support the pump shaft and pistons.
Pistons in hardened and tempered steel.
Pump head in pressed brass.
Double gasket sealing system
